Terraform

Terraform Jsonencode Function ā€“ Definition & Examples

Terraform Jsonencode Function

What is the jsonencode function in Terraform?

jsonencode is a Terraform function that encodes a given value to a string using JSON syntax. It can be useful wherever you need to deal with JSON input, for example, creating an IAM user in AWS, or Policy in Azure.

What is the jsondecode function in Terraform?

The opposite of theĀ jsonencode function, theĀ jsondecodeĀ function in Terraform allows you to parse a JSON-formatted string and convert it into a data structure that you can use within your Terraform configurations.

It is useful wherever you need to convert your output to JSON and use the results elsewhere in your Terraform configuration.

Read more about other Terraform functions, expressions, and loops.

How to use the jsonencode Terraform function?

To play around with theĀ jsonencodeĀ function, you can use the Terraform console. Simply typeĀ terraform consoleĀ into your terminal to start.

EnterĀ jsonencode({"hello"="world"}) ā€” The output displayed will be in JSON format.

terraform jsonencode examples

Note that theĀ jsonencodeĀ cannot directly map to all types available in JSON formatting because there are differences between how the types are represented between HCL (Hashicorp configuration language) and JSON.

Terraform to JSON data types are mapped as follows:

  • string ā€” String
  • number ā€” Number
  • bool ā€” Bool
  • list(...) ā€” Array
  • set(...) ā€” Array
  • tuple(...) ā€” Array
  • map(...) ā€” Object
  • object(...) ā€” Object
  • null ā€” Null value

For the following examples, we will create a simple JSON file:

yoda.json

{
  "name": "Yoda",
  "age": 900,
  "city": "Dagobah System"
}

Example 1: Using JSON files as input variables and local variables

In this example, we will use the yoda.json file as an input variable, have Terraform use theĀ jsondecodeĀ function in the locals, and then finally output the results.

variable "json_input" {
  description = "Path to the JSON input file"
  type        = string
}

locals {
  input_data = jsondecode(file(var.json_input))
}

output "name" {
  value = local.input_data.name
}

output "age" {
  value = local.input_data.age
}

output "city" {
  value = local.input_data.city
}
  1. We define a variableĀ json_inputĀ to specify the path to the JSON input file.
  2. We decode the JSON content using theĀ jsondecodeĀ function and store it in theĀ local.input_dataĀ variable. TheĀ file function specifies we need to read the JSON contents from a file.
  3. We define outputs for each key in the JSON, making the data available for other parts of your Terraform code. It can be referenced elsewhere in your Terraform code usingĀ local.input_data.nameĀ ,Ā local.input_data.ageĀ , andĀ local.input_data.city.

To run the code, in your terminal specify the variable directly with the -varĀ flag, which points to the path of theĀ yoda.jsonĀ file:

terraform init
terraform apply -var="json_input=yoda.json"

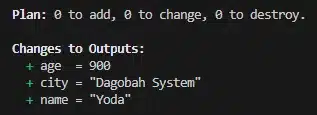

terraform jsonencode variable

Example 2: Passing in JSON via environment variables

In this example, we will define some JSON as an environment variable and pass it into our Terraform configuration.

To set the environment variables, run the following on the terminal:

export TF_VAR_json_input='{"name": "Yoda", "age": 900, "city": "Dagobah System"}'

Environment variables can be used to set Terraform variables usingĀ TF_VAR.

The _json_imputĀ part defines the name of the variable we want to set. This can then be referenced directly in the Terraform code (without the need for theĀ fileĀ function this time):

variable "json_input" {
  description = "JSON input"
  type        = string
  default     = ""
}

locals {
  input_data = jsondecode(var.json_input)
}

output "name" {
  value = local.input_data.name
}

output "age" {
  value = local.input_data.age
}

output "city" {
  value = local.input_data.city
}

To see the results, run:

terraform init
terraform apply

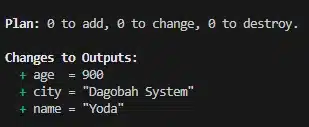

jsonencode terraform

Example 3: Decoding JSON strings to Terraform maps

In this example, we will output the values as a Terraform map and pass the JSON in directly on the terminal.

Note the outputs now have the values for each key contained in [""]Ā .

variable "json_input" {
  description = "JSON input"
  type        = string
  default     = ""
}

locals {
  input_data = jsondecode(var.json_input)
}

output "name" {
  value = local.input_data["name"]
}

output "age" {
  value = local.input_data["age"]
}

output "city" {
  value = local.input_data["city"]
}

To test the output we can run:

terraform init
terraform apply -var='json_input={"name": "Yoda", "age": 900, "city": "Dagobah System"}'
terraform jsonencode list

Example 4: Using jsonencode in the template file

Suppose you have a template file, for example, a configuration file, and you want to include some data as a JSON-encoded string in that file.

Our template file looks like this:

{
  "app_config": ${app_config}
}

Our terraform configuration looks like this:

example4.tf

# Define a variable with configuration data
variable "app_config" {
  type = map(string)
  default = {
    name = "Yoda",
    age  = "900",
    city = "Dagobah System"
  }
}

# Render the template
data "template_file" "app_config_template" {
  template = file("template.tpl")
  vars = {
    app_config = jsonencode(var.app_config)
  }
}

# Create a local file to save the generated JSON config
resource "local_file" "app_config" {
  filename = "app_config.json"
  content  = data.template_file.app_config_template.rendered
}

First, the data is defined that you want to encode as a JSON string. This data could be a variable or a map within your Terraform configuration.

Next, we use theĀ data "template_file"Ā block to render a template file. TheĀ templateĀ attribute specifies the path to the template file, which isĀ template.tpl. TheĀ varsĀ attribute is used to pass variables into the template. In this case, we’re passing theĀ app_configĀ variable, but we use theĀ jsonencodeĀ function to encode it as a JSON string.

Finally, we create a local file using theĀ resource "local_file"Ā block. This local file is used to save the generated JSON configuration.

We specify theĀ filenameĀ attribute to set the path and name of the output file, which isĀ app_config.json. TheĀ contentĀ attribute contains the rendered output from the template defined in theĀ data "template_file"Ā block. This content is obtained usingĀ data.template_file.app_config_template.rendered.

To run the example:

terraform init
terraform apply
terraform jsonencode templatefile

On confirming the apply, a file called app_config.json will be generated in the local directory containing the map contents in JSON format:

{
  "app_config": {"age":"900","city":"Dagobah System","name":"Yoda"}
}

Example 5: Using jsonencode with the for loop

You can useĀ jsonencodeĀ in conjunction with aĀ forĀ loop in Terraform to generate JSON data structures dynamically. In this example, we have a list of items, which we will encode into a JSON array using a forĀ loop.

OurĀ template.tplĀ file looks like this:

{
  "items": ${items_json}
}

example5.tf:

# Define a list of items
variable "items" {
  type    = list(string)
  default = ["Yoda", "Darth Vader", "Salacious Crumb"]
}

# Render the template
data "template_file" "items_template" {
  template = file("template.tpl")
  vars = {
    items_json = jsonencode([for item in var.items : { name = item }])
  }
}

# Create a local file to save the generated JSON
resource "local_file" "items_json" {
  filename = "items.json"
  content  = data.template_file.items_template.rendered
}

This time, inside theĀ varsĀ block, we use aĀ forĀ loop to iterate over each item in theĀ var.itemsĀ list. In each iteration, we create a map with the key “name” and the value as the current item. This list of maps is then passed toĀ jsonencodeĀ to create a JSON array.

terraform init
terraform apply

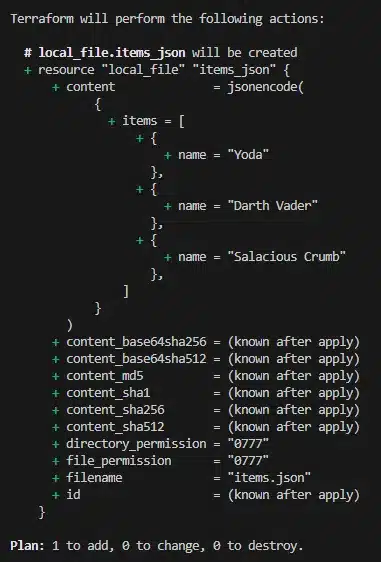

terraform jsonencode policy

On confirmation of the apply, anĀ items.jsonĀ file is generated in the local directory containing the following JSON:

{
  "items": [{"name":"Yoda"},{"name":"Darth Vader"},{"name":"Salacious Crumb"}]
}

Example 6: Creating IAM policies using jsonencode function

Creating IAM policies in Terraform using theĀ jsonencodeĀ function can be useful when you need to define fine-grained permissions for your AWS resources.

IAM policies are defined as JSON documents, and you can use theĀ jsonencodeĀ function to create these policy documents in your Terraform configuration.

# Define a map of IAM policy statements
variable "iam_policy_statements" {
  type = list(object({
    action   = list(string)
    resource = string
  }))
  default = [
    {
      action   = ["s3:GetObject", "s3:ListBucket"]
      resource = "arn:aws:s3:::my-bucket/*"
    },
    {
      action   = ["s3:PutObject"]
      resource = "arn:aws:s3:::my-bucket/upload/*"
    },
    # Add more policy statements as needed
  ]
}

# Encode the IAM policy using jsonencode
locals {
  iam_policy_document = jsonencode({
    Version = "2012-10-17",
    Statement = [
      for statement in var.iam_policy_statements : {
        Action   = statement.action,
        Effect   = "Allow",
        Resource = statement.resource,
      }
    ]
  })
}

# Create an IAM policy
resource "aws_iam_policy" "example" {
  name        = "example-policy"
  description = "Example IAM policy"
  policy      = local.iam_policy_document
}

# Attach the policy to a user, group, or role as needed
  1. The variableĀ iam_policy_statementsĀ represents a list of IAM policy statements. Each statement includes anĀ actionĀ (a list of allowed actions) and aĀ resourceĀ (the AWS resource that the actions apply to).
  2. TheĀ jsonencodeĀ function in theĀ localsĀ block is used to generate the JSON document for the IAM policy. We use aĀ forĀ loop to iterate over the policy statements defined in the variable and structure them into the required format for an IAM policy.
  3. The IAM policy is created using theĀ aws_iam_policyĀ resource. TheĀ policyĀ attribute of this resource is set to the JSON-encoded IAM policy document from theĀ localsĀ block.
  4. Finally, you can attach the created policy to an IAM user, group, or role as needed by referencing theĀ aws_iam_policy.exampleĀ resource in the respective resource block (aws_iam_user_policy_attachment,Ā aws_iam_group_policy_attachment, orĀ aws_iam_role_policy_attachment).

Example 7: Creating Azure Policy definitions with jsonencode function

Azure Policy definitions are typically defined as JSON objects, and you can useĀ jsonencodeĀ to create those JSON objects within your Terraform configuration.

The below example shows an Azure policy rule enforcing restrictions if certain tags are applied, which can be referenced elsewhere in your code by referring to policy_rule.

# Define an Azure Policy definition
resource "azurerm_policy_definition" "example" {
  name         = "example-policy"
  display_name = "Example Policy"
  description  = "An example Azure Policy definition"
  policy_type  = "Custom"
  mode         = "All"

  metadata {
    category = "General"
  }

  # Encode the policy rule using jsonencode
  policy_rule = jsonencode({
    if {
      allOf = [
        {
          field = "tags['environment']"
          equals = "production"
        },
        {
          field = "tags['costCenter']"
          notLike = "HR-*"
        }
      ]
    }
    then {
      effect = "deny"
    }
  })
}

After defining the policy, you can associate it with a policy assignment to enforce it within a particular scope, such as the subscription level:

resource "azurerm_policy_assignment" "example" {
  name                 = "example-assignment"
  scope                = "/subscriptions/<subscription_id>"
  policy_definition_id = azurerm_policy_definition.example.id
}

What is the difference between jsonencode and heredoc Terraform?

Where,Ā jsonencode is specifically for encoding structured data into a JSON string, making it suitable for creating JSON-based configuration files or policy definitions, Heredoc is a way to include multi-line strings directly in your Terraform configuration.

It allows you to define a block of text without escaping special characters or worrying about JSON formatting. Heredoc is often used for embedding text, scripts, or configuration files in your Terraform code.

For reference, Heredoc syntax within a resource block looks like the below:

resource "example_resource" "example" {
  config_script = <<-EOT
    echo "This is a sample script"
  EOT
}

Key points

Handling JSON files in your Terraform configuration files can be achieved using theĀ jsonencodeĀ and the opposite jsondecode functions. Data structures can be manipulated as needed to read in or create new JSON files for common purposes, such as IAM assignments in AWS or creating Azure Policy.

We encourage you also to exploreĀ how Spacelift makes it easy to work with Terraform. If you need any help managing your Terraform infrastructure, building more complex workflows based on Terraform, and managing AWS credentials per run, instead of using a static pair on your local machine, Spacelift is a fantastic tool for this.Ā It supports Git workflows, policy as code, programmatic configuration, context sharing, drift detection, and many moreĀ greatĀ features right out of the box. You can check it for free, byĀ creating a trial account.

Note: New versions of Terraform are placed under the BUSL license, but everything created before version 1.5.x stays open-source. OpenTofu is an open-source version of Terraform that expands Terraformā€™s existing concepts and offerings. It is a viable alternative to HashiCorpā€™s Terraform, being forked from Terraform version 1.5.6.
